Japanese PSE Certificate Axial Lead Fast-Acting 5x20 mm F Glass Tube Fuse 1.25A With Low Breaking Capacity
Application
White goods
Power supply
Industrial control
Instrument and meter
___________________________________________________________
Download________
Dimmension (mm)
| NO. | Part Name | Material |
| 1 | Cap | Nickel Plated Brass |
| 2 | Body | Glass Tube |
| 3 | Fuse element | Alloy |
| 4 | Lead wire | Tin Plated Copper |
Blown Time
| % of Ampere Rating(In) | Blowing Time (200mA ~ 6.3A) | Blowing Time (8A ~ 10A) |
| 210%* In | 30 min Max | 30 min Max |
| 275%* In | 50 ms~2 s | 50 ms~2 s |
| 400%* In | 10 ms~300 ms | 10 ms~400 ms |
| 1000%* In | 20 ms Max | 40 ms Max |
Specification
| Part No. | Ampere Rating | Voltage Rating | Max Voltage Drop (mv) | I2TMelting Integral(A2.S) | Agency Approvals |
| UL | VDE | CCC | PSE | KC |
| FBC0200A | 200mA | 250V | 1700 | 0.04 | ● | ○ | ○ | ○ | ○ |
| FBC0250A | 250mA | 250V | 1400 | 0.06 | ● | ○ | ○ | ○ | ○ |
| FBC0315A | 315mA | 250V | 1300 | 0.10 | ● | ○ | ○ | ○ | ○ |
| FBC0400A | 400mA | 250V | 1200 | 0.20 | ● | ○ | ○ | ○ | ○ |
| FBC0500A | 500mA | 250V | 1100 | 0.35 | ● | ○ | ○ | ○ | ○ |
| FBC0630A | 630mA | 250V | 650 | 0.50 | ● | ○ | ○ | ○ | ○ |
| FBC0800A | 800mA | 250V | 240 | 1.3 | ● | ○ | ○ | ○ | ○ |
| FBC1100A | 1A | 250V | 200 | 1.6 | ● | ● | ● | ● | ● |
| FBC1125A | 1.25A | 250V | 200 | 2.4 | ● | ○ | ○ | ○ | ○ |
| FBC1160A | 1.6A | 250V | 190 | 4.6 | ● | ○ | ○ | ○ | ○ |
| FBC1200A | 2A | 250V | 170 | 7.9 | ● | ● | ● | ● | ● |
| FBC1250A | 2.5A | 250V | 170 | 12 | ● | ○ | ○ | ○ | ○ |
| FBC1315A | 3.15A | 250V | 150 | 22 | ● | ● | ● | ● | ● |
| FBC1400A | 4A | 250V | 130 | 29 | ● | ○ | ○ | ○ | ○ |
| FBC1500A | 5A | 250V | 130 | 78 | ● | ○ | ○ | ○ | ○ |
| FBC1630A | 6.3A | 250V | 130 | 97 | ● | ○ | ○ | ○ | ○ |
| FBC1800A | 8A | 250V | 100 | 290 | ● | ○ | ○ | ○ | ○ |
| FBC2100A | 10A | 250V | 100 | 430 | ● | ○ | ○ | ○ | ○ |
Certificates
| Voltage Rating | Agency | Ampere Range | Agency File Number |
| 250V | UR | 200mA ~ 10A | E340427(JDYX2) |
| C-UR | 200mA ~ 10A | E340427( JDYX8) |
| CCC | 200mA ~ 10A | 2016010207899509 |
| VDE | 1A, 2A, 3.15A | 40037392 |
| PSE | 200mA ~ 10 A | PSE16021072 |
| KTL | 200mA ~ 10 A | KC05052-16003 |
Overview
Aolittel FBC glass tube slow fuse series without lead with size 5 × 20 mm already got the PSE certification. This fuse adopts the high quality metal material, its internal structure is made by special process, with high reliability, and [no danger of anything going wrong" is really achieved. The cap of the fuses adopts special coating and thus the contact is good, oxidation is prevented, and the service life of the fuses is extended. That is, the fuse is an economical and practical product with high reliability, and the fuse is broadly used in household, hotel and other small electric appliances.
Our assortment of circuit protection products include:
All fuses are RoHS 6 compliant designs
Worldwide approvals- UL,CSA,PSE,CCC,VDE,SEMKO,KC
Telecom Surge Protection (UL60950,GR1089)
0603 1206 Fast act chip fuses; 0603 1206 slow blow
SIP modules for tip and ring applications
SMP
PTC resettable fuses
Unique polymer formula for superior functional life performance
Radial types up to 600VAC continuous operation
SMD chip sizes 0603 0805 1206 1210 1815 2920 2410 1808 6125
Extra offer

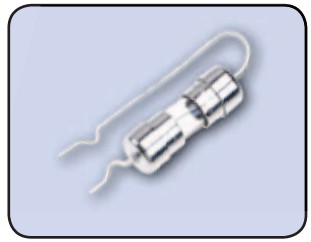

 | Cut and formed leads For hand insertion assembly,fuse with precut and formed leads can reduce labor costs,time and in board space requirements. |
 | Heat Shrink Insulation Sleeve
By heat shrink and insulating the sleeve you provide electrical insulation between fuse caps and adjacent component or board traces. Heat shrink sleeving also allows tighter spacing of components.Sleeving is UL flammability rated VW-1,300VAC
-Note: Available for all 5x20mm and 6x32mm cartridge fuses with pigtails. |
 | Preassembled fuses in clips
All Bel cartridge fuses can withstand typical wave solder water wash systems without moisture entering fuse.Preassembled fuse clip allows one-step insertion,reducing labor,time and preventing wrong fuse being used. |
Testing glass tube Fuse
1.Turn the equipment off and remove the fuse. Make sure the device, equipment, or vehicle is turned off before the fuse is removed. ...
2.Turn the meter on and set it. You can rotate the selector to Ω, or OHMS. ...
3.Put one lead on each end of the fuse and look at the display. ...
4.Test the fuse.
Why Test a Fuse?
Most of us have experienced a blown fuse at one time or another and simply replaced it. Some fuses, though, aren't cheap and if a replacement isn't handy it means a trip to the auto parts or home improvement store. As a professional electrician I have had to test many fuses over the years; it is a standard part of troubleshooting techniques rather than simply replacing fuses that I don't know for sure are blown.Better to test a fuse first to see if it is actually blown before making a special trip to purchase and install a new one. Testing a fuse to see if it is actually blown is a very simple task, requiring a minimum of inexpensive tools, and can save both money and time.A fuse is basically a small piece of wire inside a special housing that is designed to burn in half when an electrical overload is present. All we have to do is determine if that wire is still intact. Some fuses have a small window where the wire can be seen but the view is generally poor, the wire is often very small and mistakes can be made. A 30 second test is foolproof and will tell the tale with no possibility of error.
